+86-13905929157Model No.: J8
Motor Power Rates: 3800W
Max. Flow Rates: 27L/min
Max. Conveying Pressure: 50 Bar
Max. Horizontal Conveying: 70 meters
Max. Vertical Conveying: 50 meters
Hopper Capacity: 75 L
Net Weight: 78.00kgs
Gross Weight: 133.00kgs
Woodend box size: 1000*570*1000mm

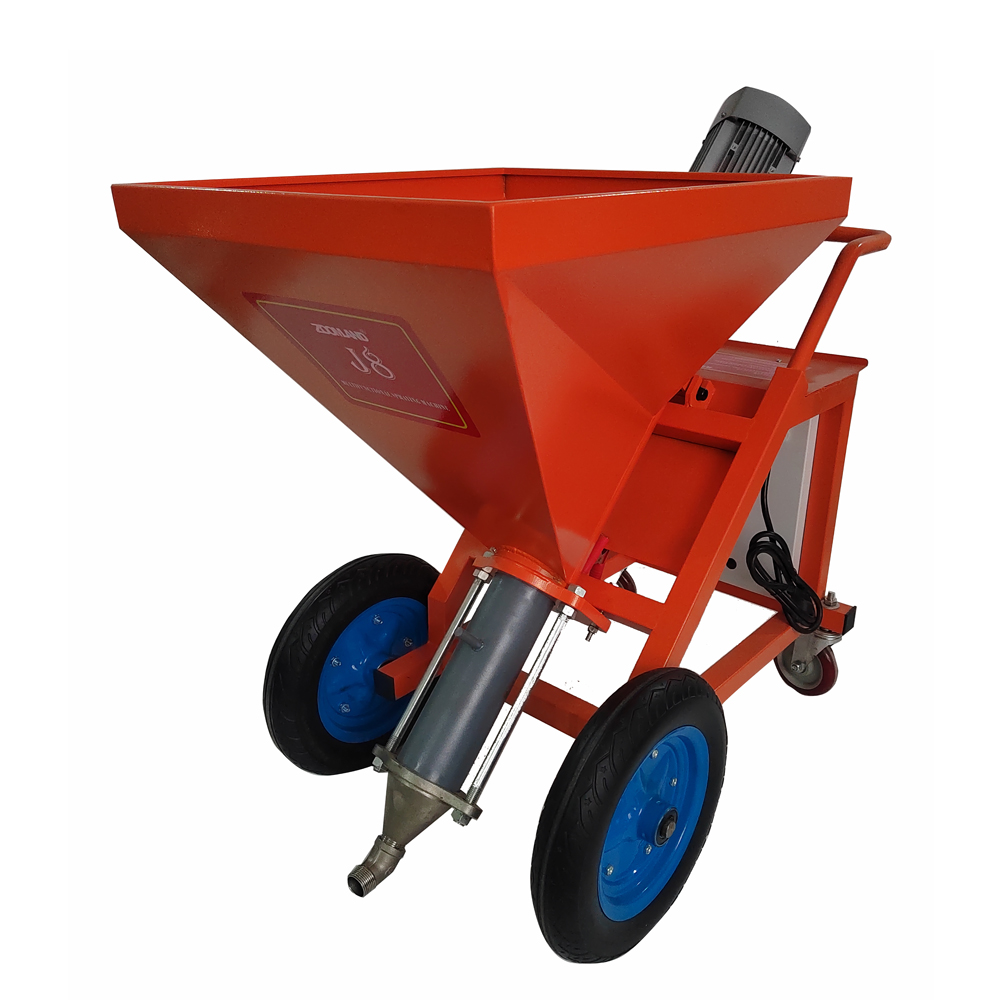

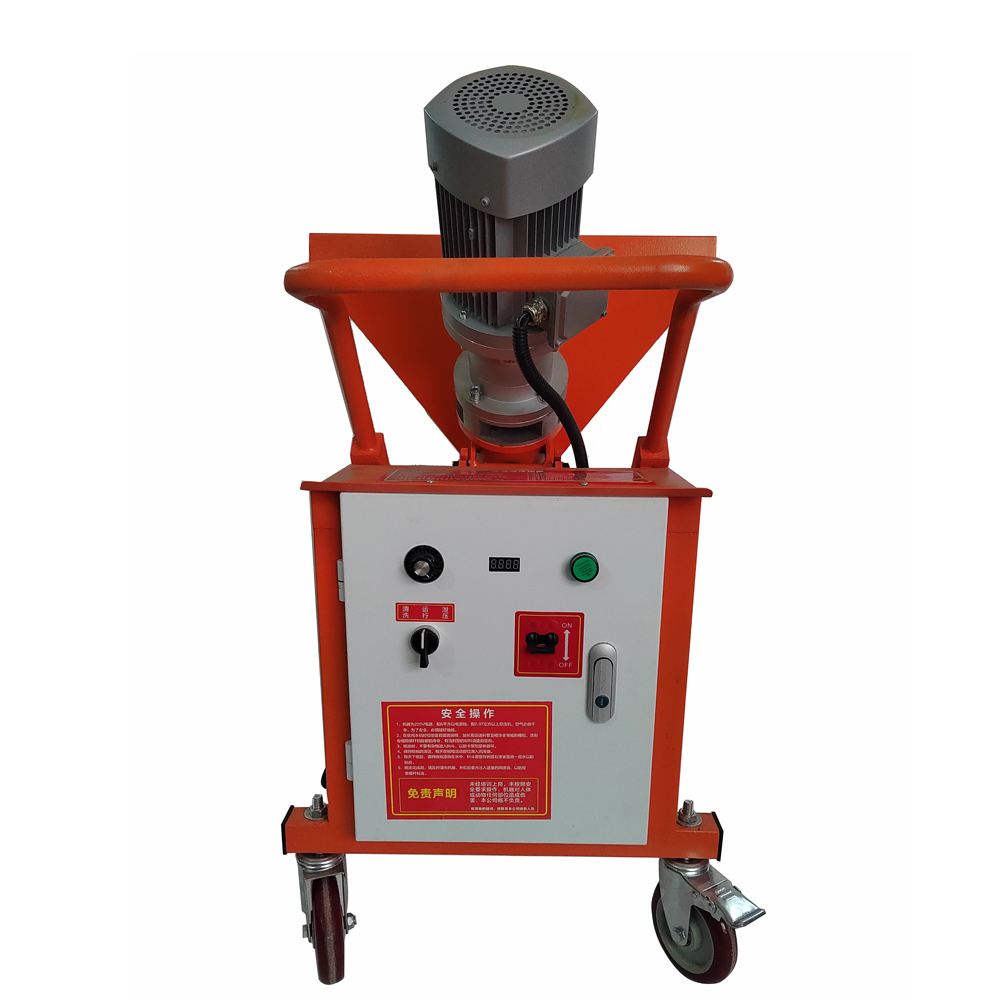

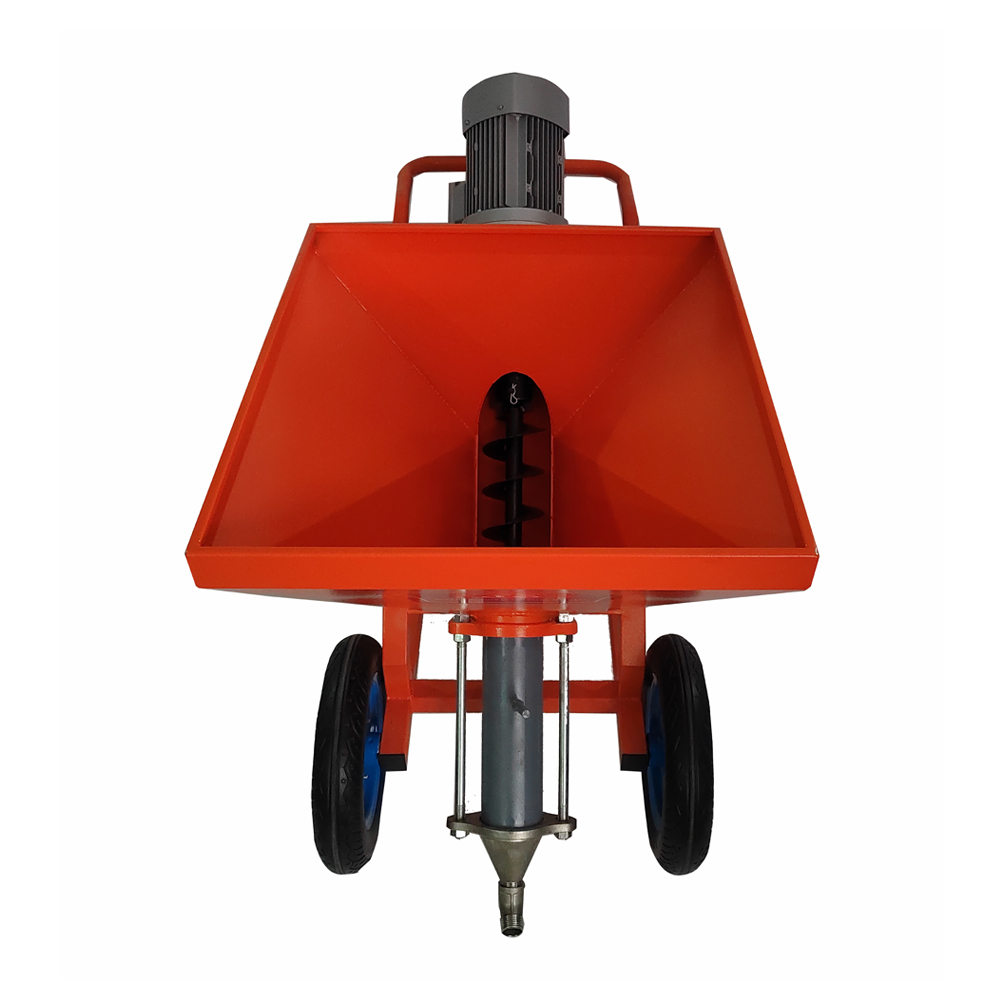

J8 Screw Pump Texture Sprayer is powered by 3800W brushless DC motor, with extended long Screw Pump and big delivery capacity, suitable for spraying most textured plaster, cement, mortar, putty, gypsum with grain size up to 5 mm.J8-2 has two guns which is suitable for quick speed spraying and big volume.
Technical Data:
| Model No. | Combined Parts | Voltage（V) | Motor Power Rates（KW) | Max. Displacement（L/min) | Max. Materials Particles (MM) | Max.Conveying （M) | Max. Conveying Pressure（bar) | Hopper Capacity (L) | |
| Horizontal | Vertical | ||||||||
| J8 | Fireproof Coating Gun:1pc Bended Spraying Gun:1pc Spraying Hose:10M,1PC Air Hose: 10M,1PC | 220 | 3.8 | 27 | 5 | 70 | 50 | 50 | 75 |

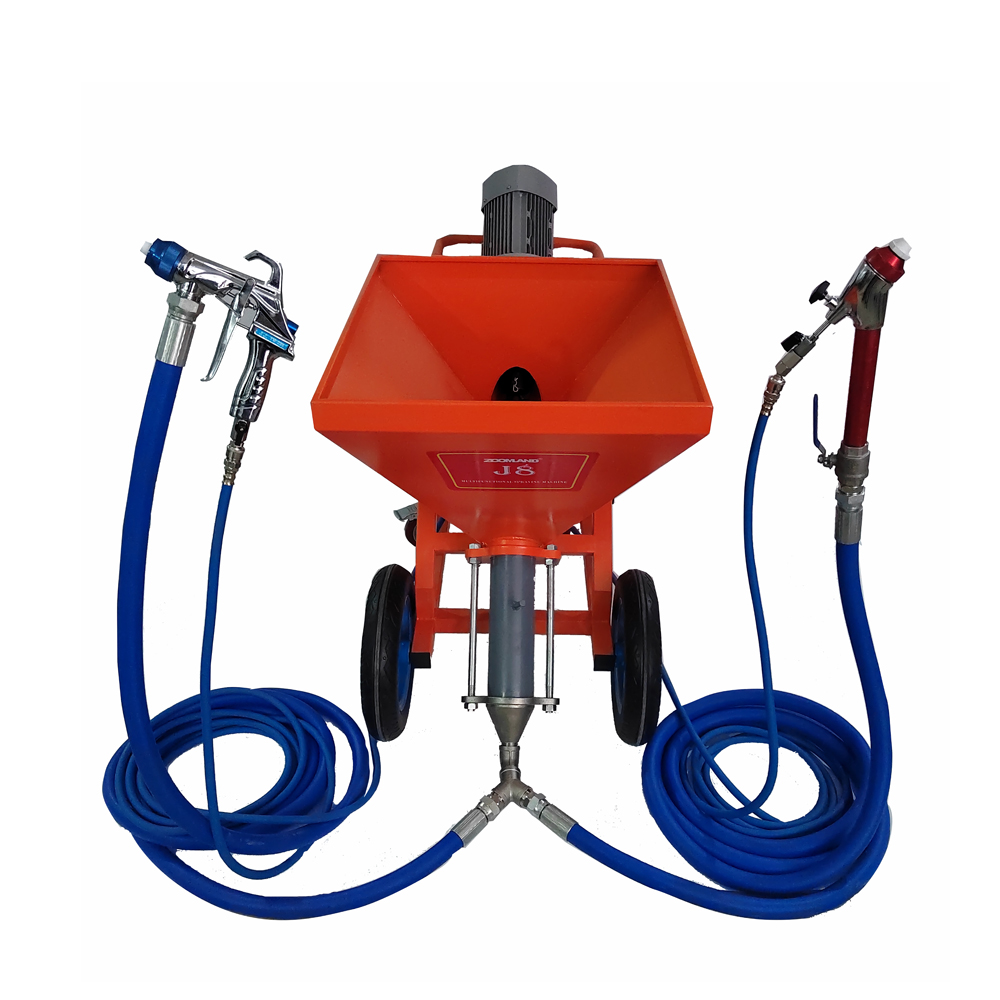

| J8-2 | Fireproof Coating Gun:1pc Spraying Gun:1pc Spraying Hose:10M,2pcs Air Hose: 10M,2pcs | 220 | 3.8 | 27 | 5 | 25 | 20 | 50 | 75 |
Nozzle size: 4, 6, 8, 10 four size available for different application such as putty, cement plaster, white cement, gypsum, lime based coating, texture etc.
Note: J8/J8-2 needs to be connected with one air compressor to work, our stand machine is without air compressor, machine only.
Air Compressor Requirement: 7.5HP /8 bar air pressure/100L Tank.
Features of J8 Screw Pump Paint Sprayer:
1). The screw pump spraying system is much easier and faster than applying texture manually.
2). Light weight and with wheels, convenient to move.
3). Quick assemble design, easy and fast maintenance.
4). Durable screw pump could be used for 5000 – 10000 square meters projects painting based on materials.
5). 27L/min big output capacity.
6). 3800W DC brushless motor, powerful motor will drive heavy material at engough pressure for spraying.
7). High performance putty plaster texture spray machine.
8). The rotor/stator pump ensures the material is pumped and sprayed out continuously and evenly.
9). Less Material Consumption
Applicable Coatings:
Texture Coating, Powder Putty, Thermal Mortar, Light-duty Plaster, Anti-crack Mortar, Adhesive Mortar, Waterproof Coating, Light-duty/Heavy Fireproof Coating, etc..
