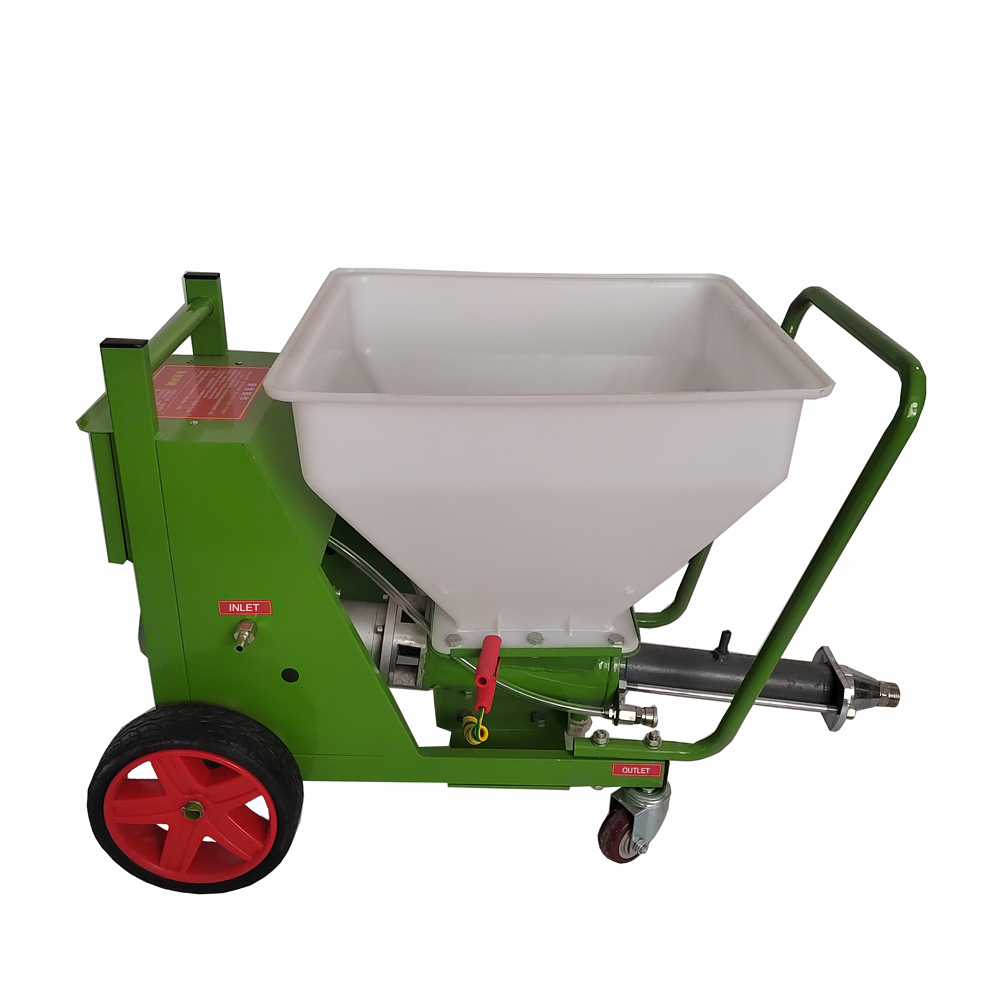

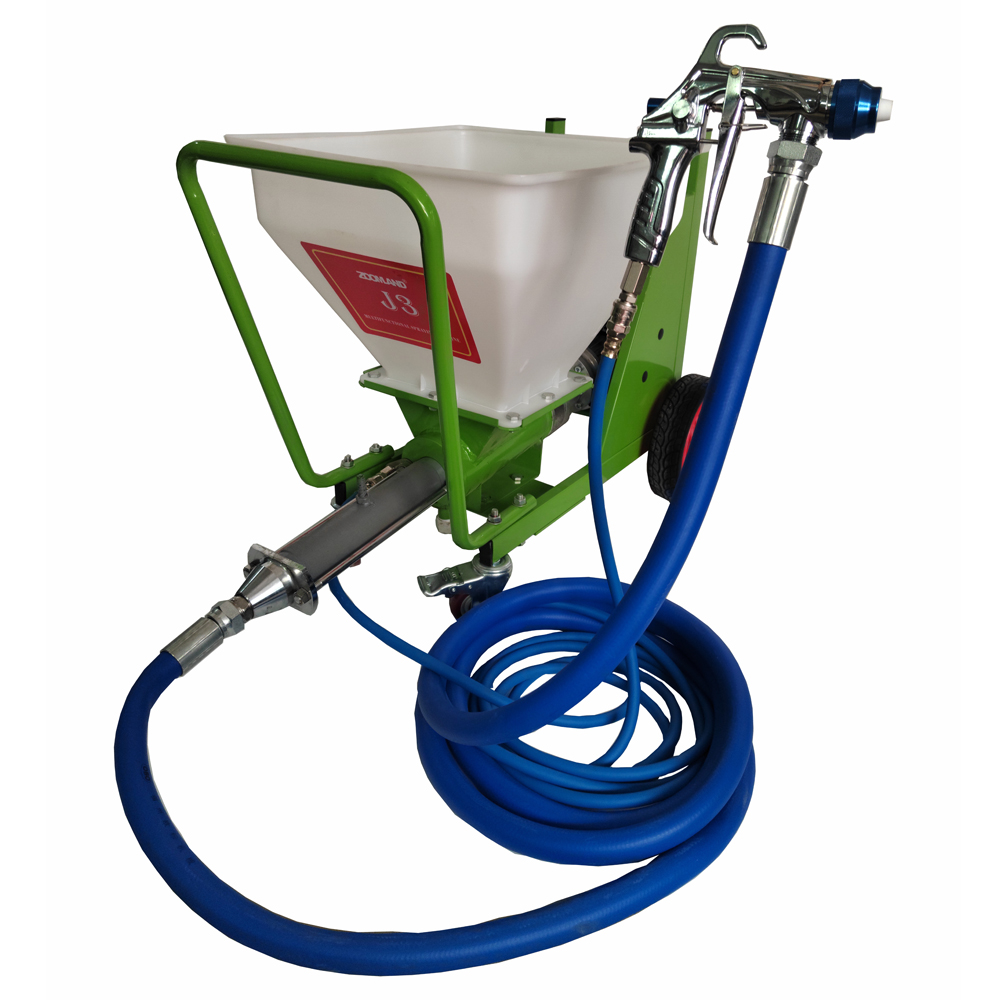

J3 High-performance Texture/Putty/Cement Plaster Spray Machine

Model No.: J3

Motor Power Rates: 2800W

Max. Flow Rates: 18L/min

Max. Conveying Pressure: 20 Bar

Max. Horizontal Conveying: 50 meters

Max. Vertical Conveying: 28 meters

Hopper Capacity: 60 L

Net Weight:  45.00kgs

Gross Weight: 80.00kgs

Woodend box size: 1020*540*800mm

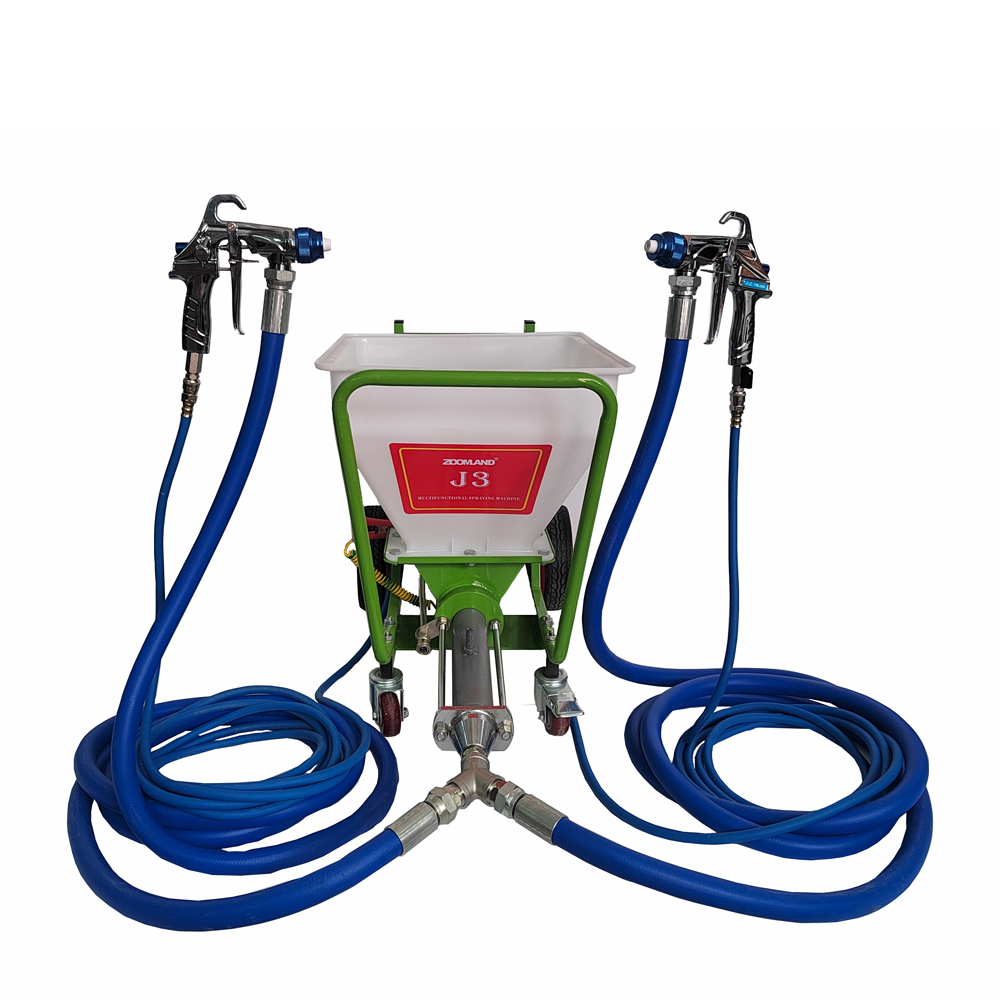

J3 is a professional solution for large areas with powerful motor and built-in material tank, it is designed for simple disassembly and easy to transport.It has 60L hopper capacity, maximum horizontal conveying is 50 meters and vertical conveying is 28 meters. J3-2 has two guns which is suitable for quick speed spraying and big volume.

Technical Data:

Nozzle size: 4, 6, 8, 10 four size available for different application such as putty, cement plaster, white cement, gypsum, lime based coating, texture etc.

Note: J3/J3-2 needs to be connected with one air compressor to work, our stand machine is without air compressor, machine only.

Features of J3 Screw Pump Paint Sprayer:

1). The screw pump spraying system is much easier and faster than applying texture manually.

2). Light weight and with wheels, convenient to move.

3). Quick assemble design, easy and fast maintenance.

4). Durable screw pump could be used for 5000 – 10000 square meters projects painting based on materials.

5). 18L/min big output capacity.

6). 2800W DC brushless motor, powerful motor will drive heavy material at engough pressure for spraying.

7). High performance putty plaster texture spray machine.

8). The rotor/stator pump ensures the material is pumped and sprayed out continuously and evenly.

9). Less Material Consumption

Applicable Coatings:

Texture Coating, Powder Putty, Thermal Mortar, Light-duty Plaster, Anti-crack Mortar, Adhesive Mortar, Waterproof coatings, Light-duty/Heavy Fireproof Coating, etc..
